VISION INSPECTION
vision inspection
RegemMarr Daily Chemical Bottle Appearance Inspection Equipment (EWL-10), adopts AI artificial intelligence and the latest image processing algorithm technology, equipped with multiple high-resolution cameras and optical systems, developed to meet the high-quality requirements of high-end customers, is a precision optical device in the industry that completely replaces human eyes and provides high-quality assurance. Applicable industries: used for intelligent detection of bottles such as laundry detergent, disinfectant, toilet cleaner, shampoo, etc.
| Product | Inspection Items | |||
|---|---|---|---|---|

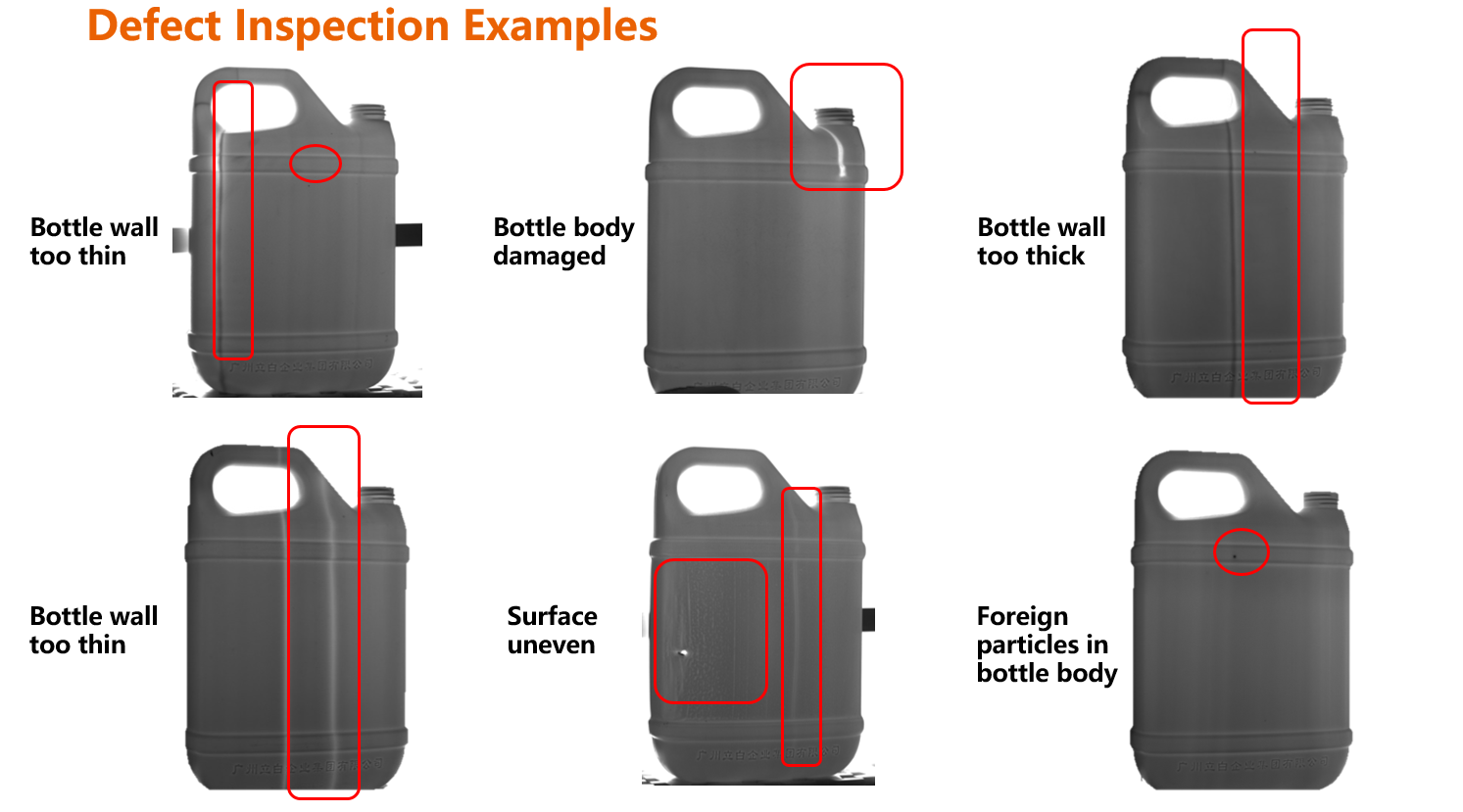

| Defect Detection | Injection Molding Defects | Bottle Wall Too Thin, Light Leakage, Gaps, Surface Irregularities, Localized Thickening, etc. | ||
| Incoming Material Defects | Foreign matter, contamination, etc. on the bottle body | |||
| Inspection Metrics | Accuracy ≥99.5%, Over-Inspection Rate ≤0.4%, Missed Inspection Rate ≤0.1% | |||
| Inspection Speed | 6000 pieces/hour | |||
| Inspection Range | Daily Chemical Bottles: Laundry Detergent, Disinfectant, Toilet Cleaner, Shampoo, etc. | |||
| Information Technology Support | SCADA；MES；CIM | |||
| Labor Savings | Saves 1-2 operators while ensuring quality | |||
| Category | Item | Parameter | ||
|---|---|---|---|---|
| Software System | Core Algorithm | RegemMarr Self-Developed Deep Learning Algorithm Platform v6.0 | ||
| Special Features | Auto Model Switching | One-Click Model Switching | |||
| Data Output | Test Report | Statistical Report | Test Log | |||
| Inspection-Exempt Area | Supports Manual and Automatic Inspection-Exempt Area Recognition | |||
| Access Control | Three-Level Access Control: Operator | Administrator | Super Administrator | |||
| Exposure Settings | Supports Manual and Automatic Exposure Learning | |||
| Communication Methods | RS232；TCP/IP；MODBUS | |||
| Operating System | Windows 10 64-bit | |||
| Hardware Specification | Workstation | EVOC High-Performance Image Processing Controller CPU：Intel I9； RAM：16G； Storage：1TB | ||
| Camera Lens | High-Precision Camera Lenses *4 | |||
| Display Monitor | 17-inch LED Display Monitor | |||
| Appearance/Electrical | Chassis Dimensions and Weight | Dimensions: 1610mm(L) × 2100mm(W) × 2095mm(H); Weight <500KG | ||
| Power Supply and Wattage | AC 220V/0.5KW | |||
| Pneumatic Source | 0.3-0.8MPa | |||
| Operating Environment | Temperature: -10℃ to 45℃; Humidity: 30-85% RH | |||
